5HP Marine Power
Compact output for small boats, tender craft, and light-duty fishing applications that value portability. The 103cc engine is configured for stable output across inland and coastal operating conditions.
Outboard Motor2-stroke

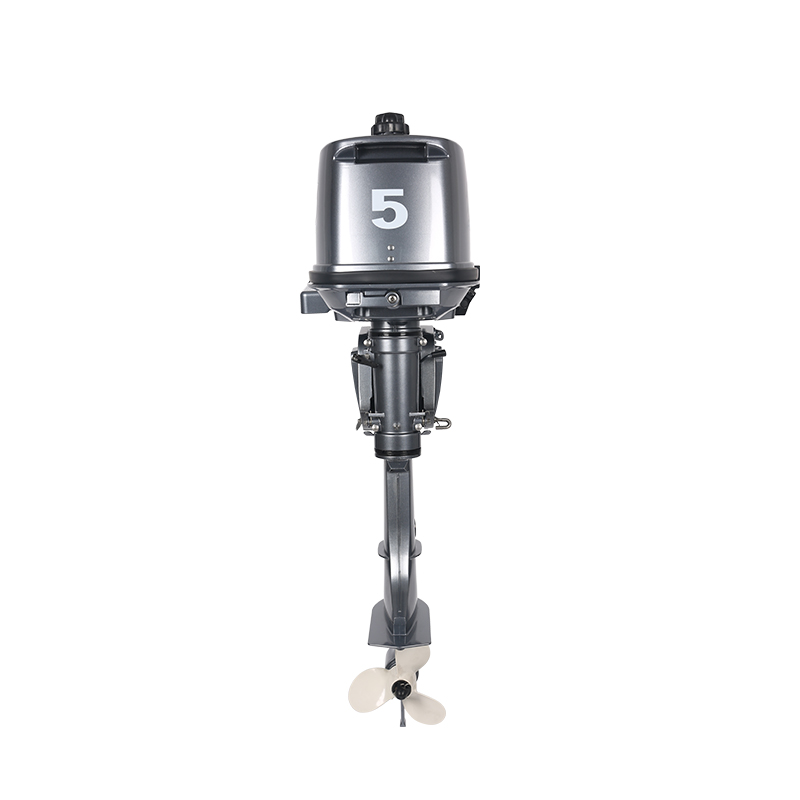

NEWTOP Outboard Motor T5
5HP

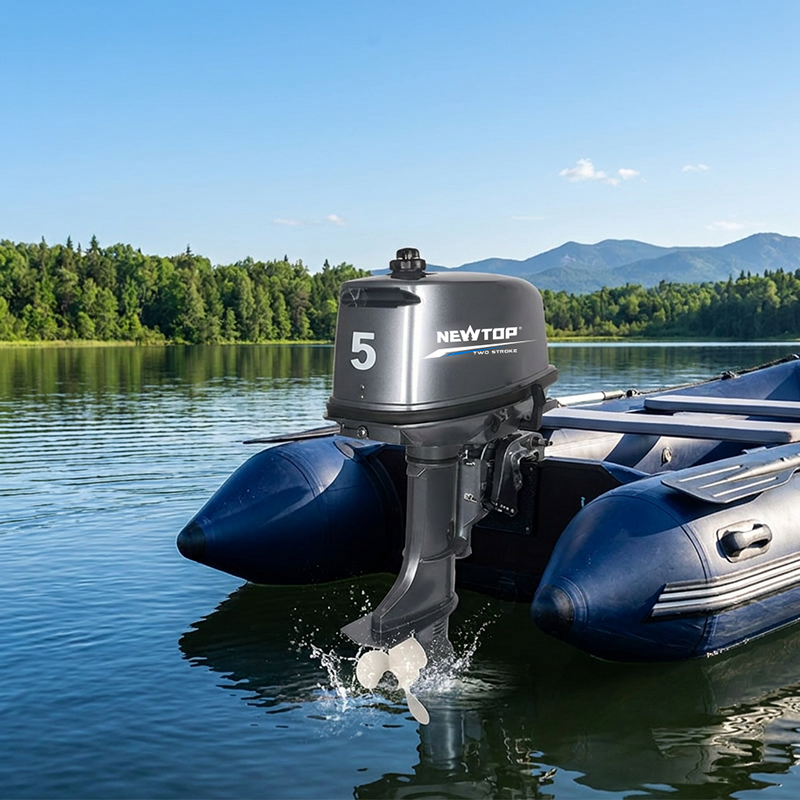

Built to offer compact size with higher output, the NEWTOP Outboard Motor T5 delivers dependable 5HP two-stroke performance in a lightweight and easy-to-maintain package. With tiller steering, manual start, and flexible fuel tank configuration, it is a practical choice for tender boats, small fishing boats and light utility craft operating on inland waterways, lakes and near-shore waters.
Key Features
- 5HP two-stroke performance with 3.7kW output
- Compact and lightweight structure for easier transport and installation

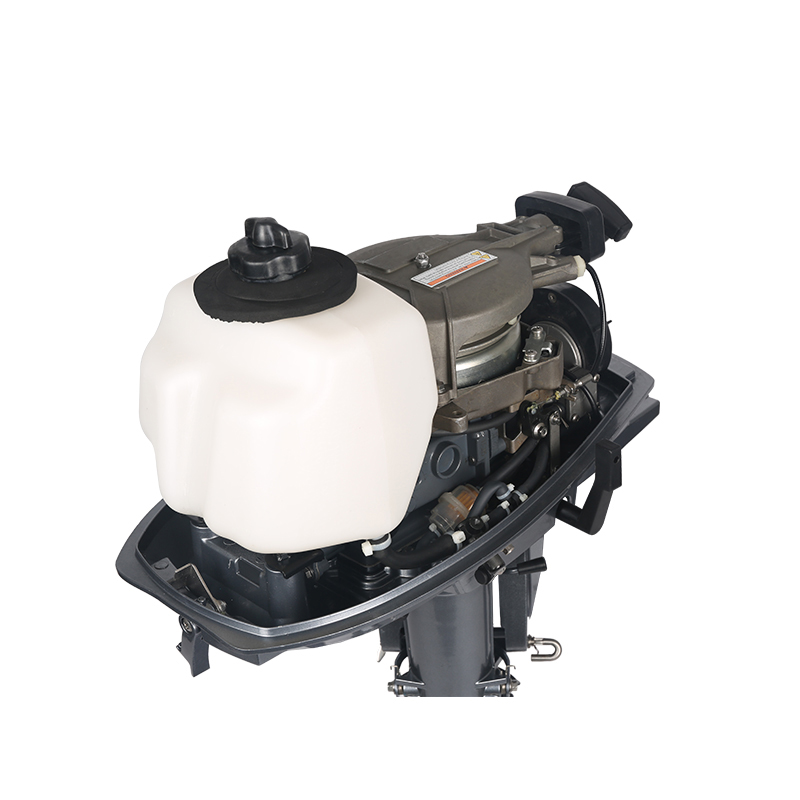

- Built-in 2.8L fuel tank with optional 12L external tank support
- Tiller steering with forward, neutral, and reverse gear shift
- CDI ignition and manual starting for dependable operation
- Manual trim and tilt for practical control
- Efficient and easy-to-maintain construction for regular use
Product Features
More than a basic specification sheet, each NEWTOP outboard motor is built around practical marine use: reliable starting, controlled fuel use, serviceable structure, and stable operation for distributors serving fishing, leisure, and working boats.
2-stroke Operating Character
Simple 2-stroke construction gives fast throttle response, easy service access, and strong power-to-weight value.
Marine-Grade Durability
Anti-corrosion treatment, protected components, and durable exterior finishing support long-term use in wet and salt-exposed environments.
Dealer-Friendly Maintenance
A straightforward servicing layout helps distributors, repair shops, and fleet users reduce downtime during routine inspection and parts replacement.
Specifications
| Max.Output Power | 5.0hp/3.7kW |
| Tansom Height | 15" |
| Engine Type | L1 |
| Displacement | 103cc |
| Bore X Stroke | 54x45mm |
| Ignition System | CDI |
| Max.RPM Range | 4500-5500rpm |
| Idling RPM Range | 1000-1100rpm |
| Fuel Induction System | Carburetor |
| Steering System | Tiller |
| Starting System | Manual |
| Gear Shift | F-N-R |
| Gear Ratio | 2.08 |
| Trim and Tilt | Manual |
| Fuel Tank Capacity | Built-in 2.8L/12L Outside |
| Max. Fuel Consumption | 2.6L/h |
| Lubrication System | 50:1 |
| Gear Oil Capacity | 195cc |
| Rectifier Charging Capacity | None |
| Propeller Options | 7-1/2"X7"-BL |
| N.W./G.W. | 20/21kgs |

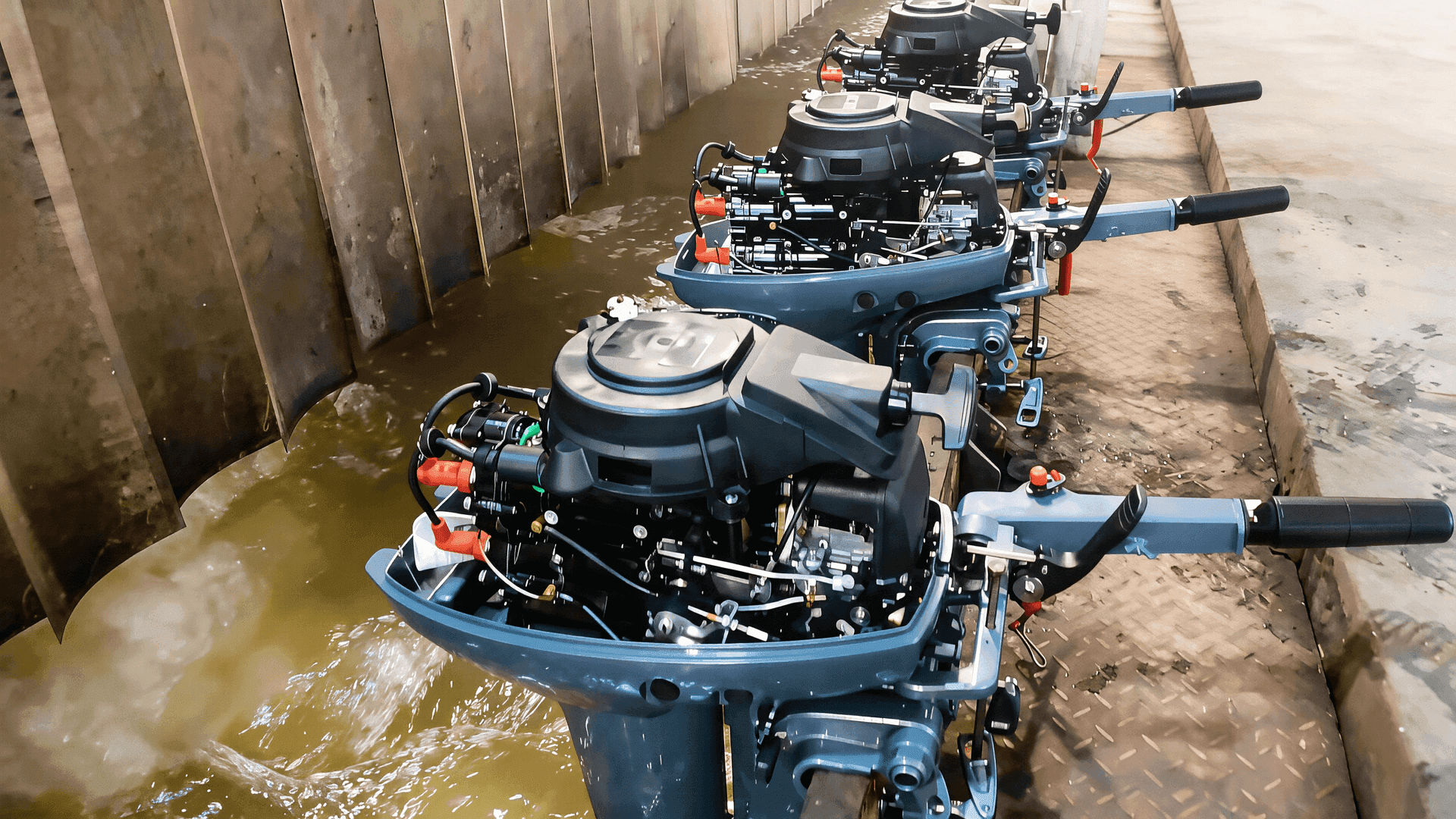

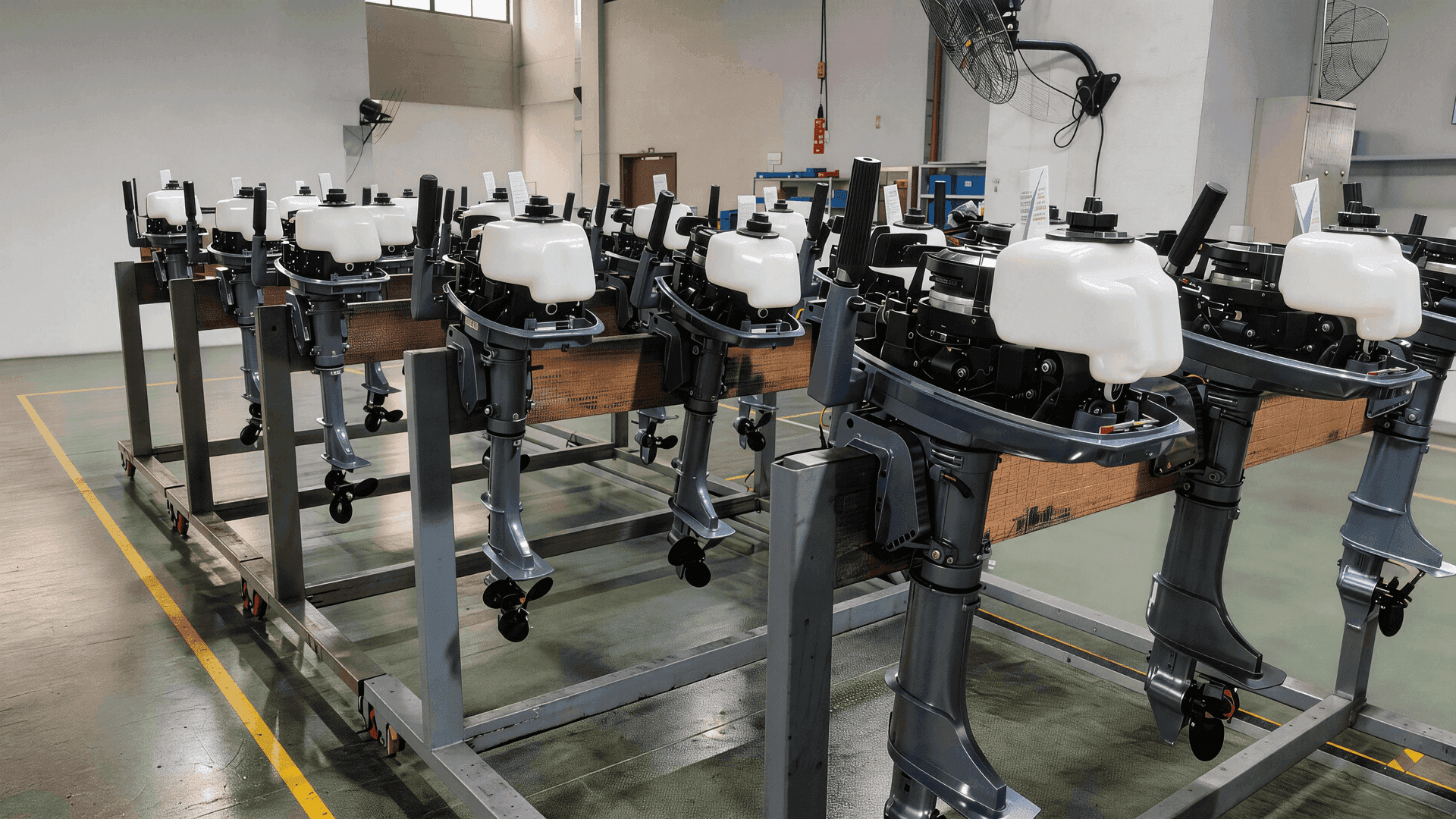

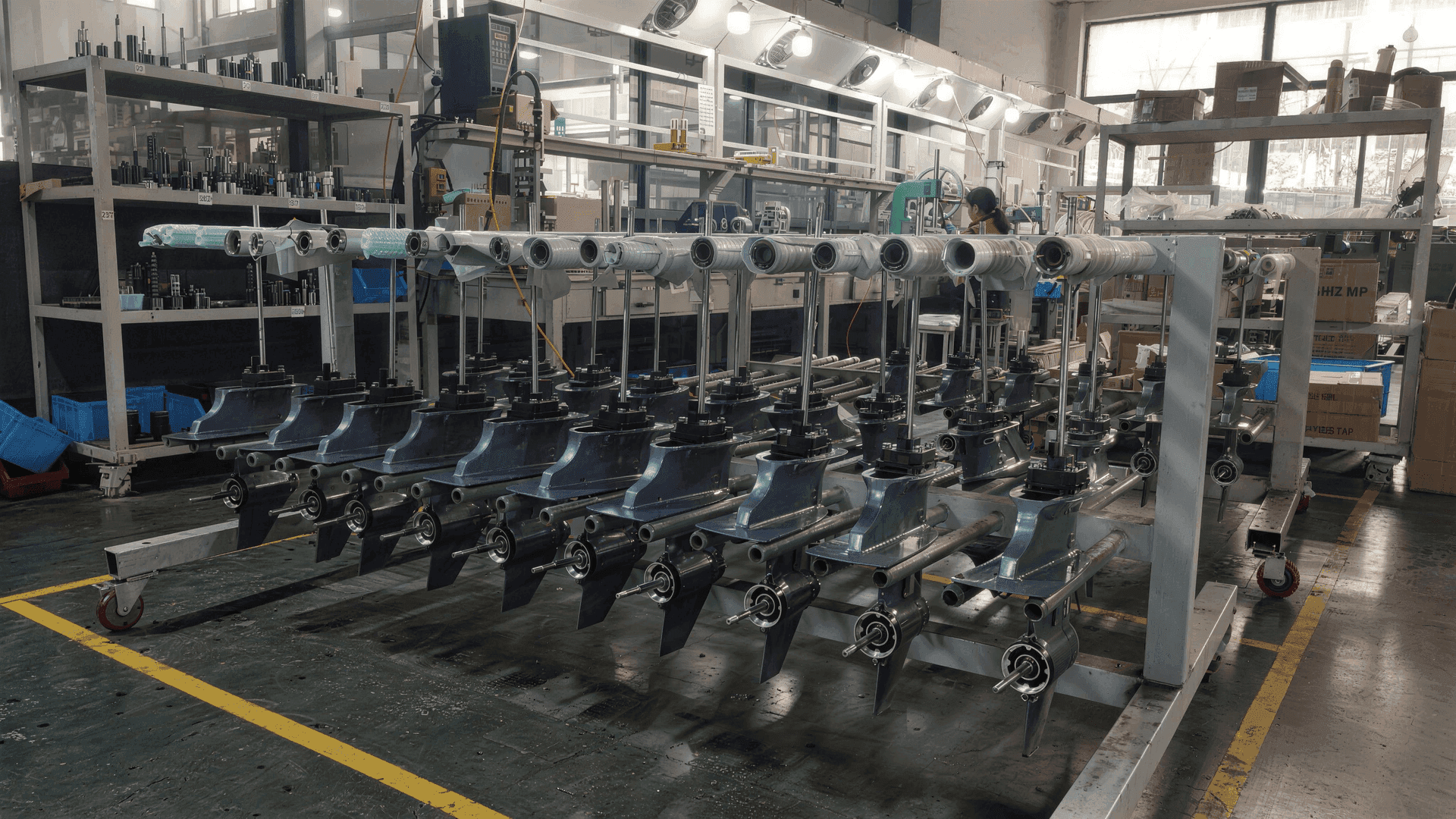

Factory-Built Quality

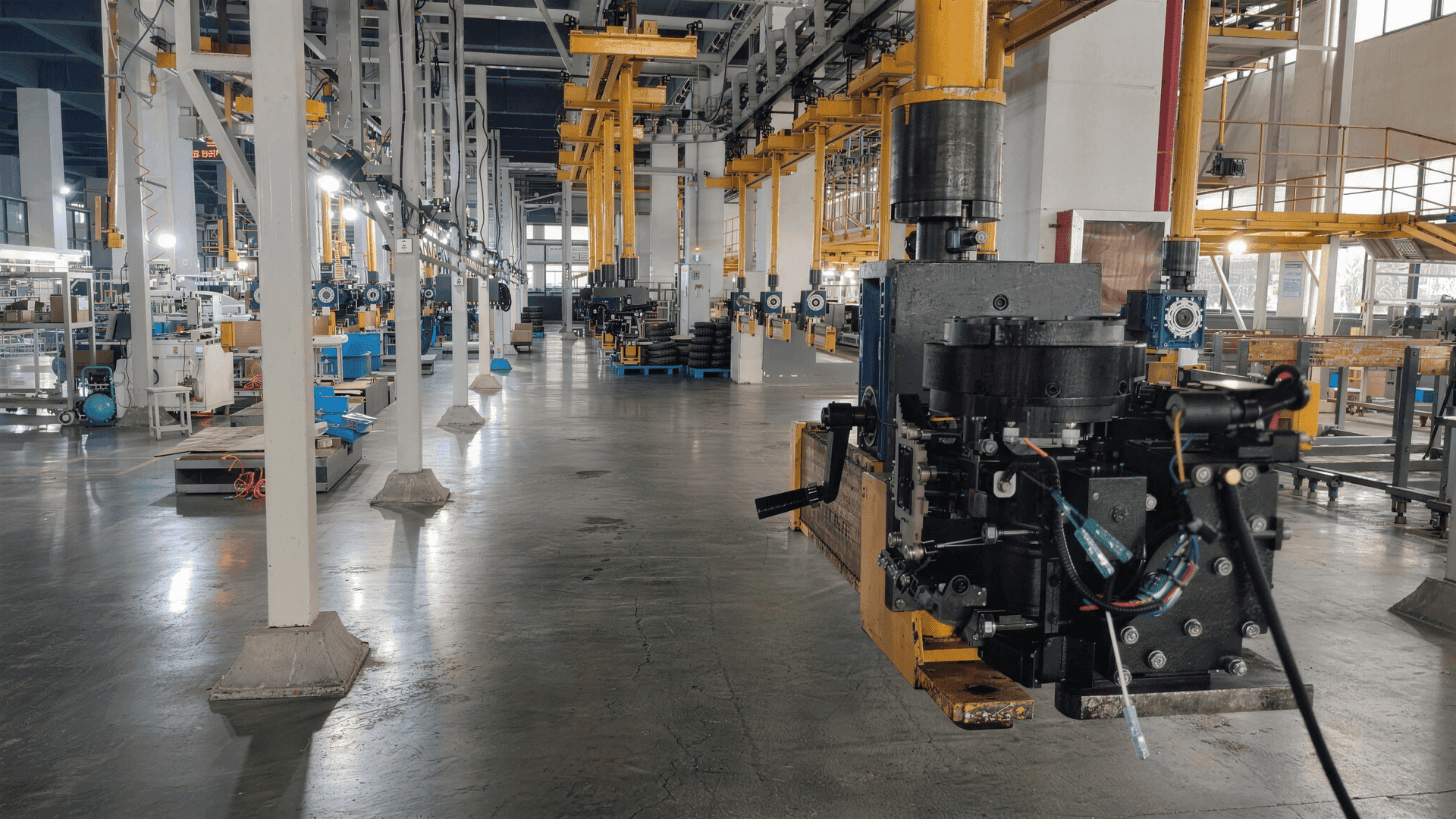

NEWTOP controls key production steps from engine assembly to final testing, helping keep product quality consistent for long-term distribution.
