60HP Marine Power
Built for heavier working boats, commercial fishing routines, and users who need strong thrust under load. The 849cc engine is configured for stable output across inland and coastal operating conditions.
Outboard Motor2-stroke

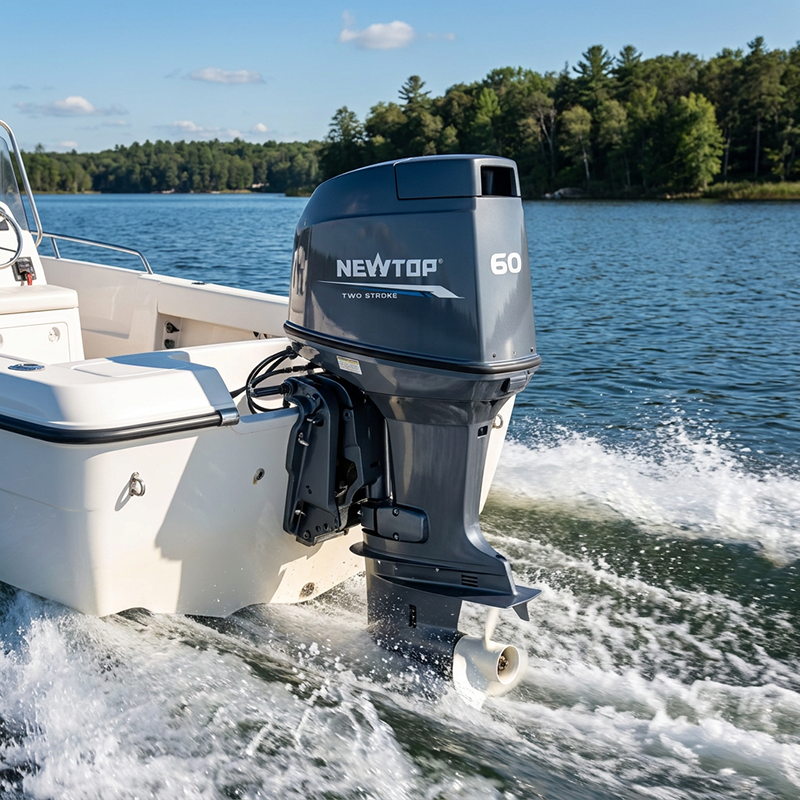

NEWTOP Outboard Motor T60
60HP
Strong output, large displacement and high durability define the NEWTOP Outboard Motor T60. Equipped with a 60HP two-stroke engine and 849cc displacement, it delivers the power needed for more demanding marine applications while maintaining practical operation and maintenance. With manual or electric starting, tiller or remote steering, and hydraulic or electric trim and tilt, it is well suited for larger fishing boats, utility vessels and working boats used in inland and coastal conditions.
Key Features
- 60HP output with 44.1kW power and 849cc displacement
- Large-displacement design for stronger performance
- Fast acceleration for quicker response on the water
- Manual starting or electric starting options
- Tiller steering or remote control for flexible operation
- Hydraulic or electric trim and tilt system
- Fuel-saving and easy-to-maintain construction
- High-durability design for long-term marine use
Product Features
More than a basic specification sheet, each NEWTOP outboard motor is built around practical marine use: reliable starting, controlled fuel use, serviceable structure, and stable operation for distributors serving fishing, leisure, and working boats.
2-stroke Operating Character
Simple 2-stroke construction gives fast throttle response, easy service access, and strong power-to-weight value.
Marine-Grade Durability
Anti-corrosion treatment, protected components, and durable exterior finishing support long-term use in wet and salt-exposed environments.
Dealer-Friendly Maintenance
A straightforward servicing layout helps distributors, repair shops, and fleet users reduce downtime during routine inspection and parts replacement.
Specifications
| Max.Output Power | 60hp/44.1kW |
| Tansom Height | 20/22" |
| Engine Type | L3 |
| Displacement | 849cc |
| Bore X Stroke | 72x69.5mm |
| Ignition System | CDI |
| Max.RPM Range | 4500-5500rpm |
| Idling RPM Range | 950-1050rpm |
| Fuel Induction System | Carburetor |
| Steering System | Tiller/Remote |
| Starting System | Manual or Electric |
| Gear Shift | F-N-R |
| Gear Ratio | 2.33 |
| Trim and Tilt | Hydraulic/Electric |
| Fuel Tank Capacity | 24L |
| Max. Fuel Consumption | 25.5L/h |
| Lubrication System | 50:1 |
| Gear Oil Capacity | 610cc |
| Rectifier Charging Capacity | 12V,7A |
| Propeller Options | 3-13"/15"/17" |
| N.W./G.W. | 102/107kgs |
Factory-Built Quality
NEWTOP controls key production steps from engine assembly to final testing, helping keep product quality consistent for long-term distribution.
